Name: 3 Phase 400V 11kW Portable EV Car Charger IP67 with CE Certification
Brand: Chengdu Honors Technology Co.,Ltd
SKU: EVA11B
Price: 217.00 USD
Availability: InStock

Nome da marca:	ANS
Número do modelo:	EVA11B
MOQ:	1
Detalhes da embalagem:	15.7153.15 (dentro)
Condições de pagamento:	L/C, T/T, Western Union

Informações pormenorizadas

Descrição do produto

Informações pormenorizadas

Lugar de origem:

CHINA

Certificação:

Nome do produto:

11kW portátil e carregador de carro

Tensão de entrada/saída:

400V

Tipo:

carregador portátil do ev

weiht:

3,2 kg

Frequência nominal:

50Hz/60Hz

Cable de carregamento:

Proteção:

IP67

Certificação:

Habilidade da fonte:

100000pcs/mês

Descrição do produto

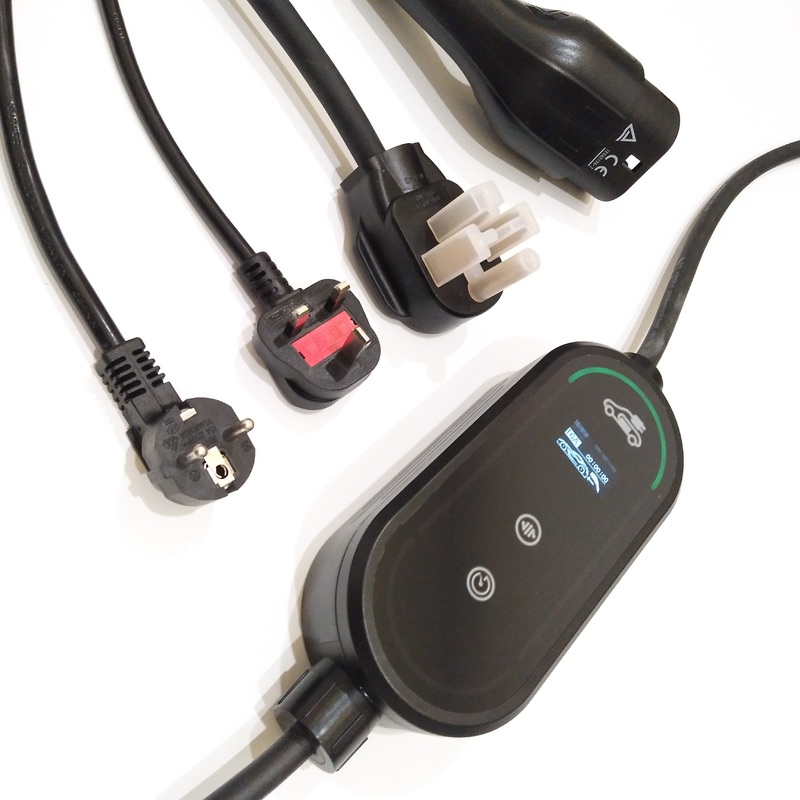

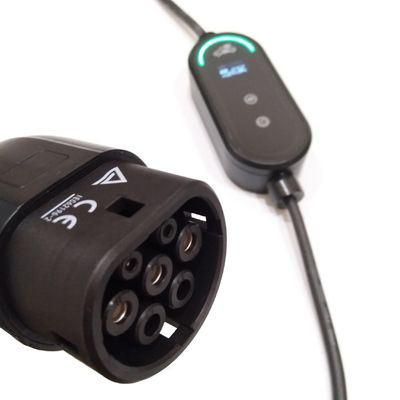

3 Phase 400V 11kW Portable EV Car Charger IP67 with CE Certification

Product Description

Unlock professional-grade, high-speed charging with the EVA11B 11kW three-phase portable charger. Engineered for efficiency and top-tier safety, its advantages are clear:

Adjustable Current: Optimize charging on robust three-phase power supplies (400V), delivering maximum speed where supported while ensuring compatibility.
Delay Charging Setting: Manage energy consumption intelligently for high-power charging, leading to significant savings on operational costs.
LED Light & Touch Key: Provides clear real-time data and control for a complex high-power charging process, ensuring user-friendliness.
Built-in RCD Type B: Non-negotiable safety for high-capacity charging, offering critical protection against all types of residual currents.

This charger is the ultimate portable solution for high-performance EVs and commercial applications.

Specificaiton

Product Model EVA11B
Input/Output voltage	AC 400V
Input frequency	50/60Hz
Max.output power	3-Phase up to 11kW(@400V 16A)
Max.output current	16A for 3- Phase
Standard	IEC 62752:2016/COR1:2019
Protection
Certificate	CE
Over voltage protection	Yes
Under voltage protection	Yes
Over load protection	Yes
Short circuit protection	Yes
Leakage protection	Yes
Over - temp protection	Yes
Lightning protection	Yes
Function and Accessory
LED indicators	Yes
OLED screen	Yes
RCD	Type B
Current adjustment	Yes
Delay charging adjustment	Yes
Ethernet/WIFI/4G/Bluetooth	No
Working environment
Protection degree	IP 67
Operation temperature	-30℃ - 60℃
Relative humidity	≤95%RH
Operating elevation limit	≤2000m
Cooling	Natural air cooling
Standby power consumption	<0.5W
Mechanical parameters
Charging cable	5m (Standard configuration)
Control box	H×W×D = 200mm×90mm×52mm
Weight	≤3.2kg
Colour&Material	Black;Tempered Glass,PC

Features

LED Display:

1. Charging Temperature

2. Charging Current

3. Charging Voltage

4. Energy Charged in KW/h

5. Charged time.

6.Set Current

7. Charging speed in KW

3 Phase 400V 11kW Portable EV Car Charger IP67 with CE Certification 0

3 Phase 400V 11kW Portable EV Car Charger IP67 with CE Certification 1

LED Indicators

3 Phase 400V 11kW Portable EV Car Charger IP67 with CE Certification 2

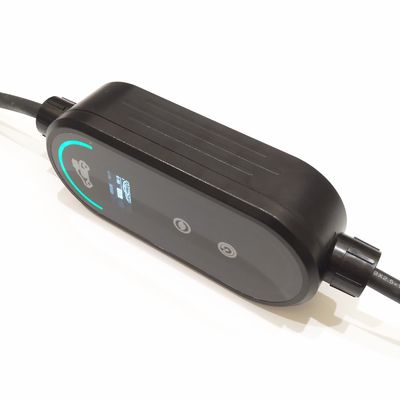

Control Box Function:

1. Leakage protection

2. Over-voltage or Low-voltage protection

3. Over-load protection

4. Lightning protection

5. Over-heat protection

6. Change current: 8A 10A 13A 16A

How to install

3 Phase 400V 11kW Portable EV Car Charger IP67 with CE Certification 3

Step 1: Put the wall bracket in a proper position on the wall, mark theposition of the top two screw holes on the wall using a pencil.

Step 2: Put down the wall bracket and drill the holes just marked. insertthe expansion plugs and fix the wall bracket to the wall usingself-tapping

screws.

Step 3: First insert the device into the upper mounting hole of the wallbracket. Then into the round hole of the bottom bracket andfix it on the wall bracket using combination screws.

Installation cases

Packaging

Our Certification

Exhibition
3 Phase 400V 11kW Portable EV Car Charger IP67 with CE Certification 7

Visits from Various Countries (looking forward to your arrival)

3 Phase 400V 11kW Portable EV Car Charger IP67 with CE Certification 8
