Name: 7kW 32A Portable EV Charger with 5m Cable IP67 CE Certified
Brand: Chengdu Honors Technology Co.,Ltd
SKU: Eva07b
Price: 217.00 USD
Availability: InStock

Nome da marca:	ANS
Número do modelo:	Eva07b
MOQ:	1
Detalhes da embalagem:	15.7153.15 (dentro)
Condições de pagamento:	L/C, T/T, Western Union

Informações pormenorizadas

Descrição do produto

Informações pormenorizadas

Lugar de origem:

China

Certificação:

Nome do produto:

Carregador EV portátil de 7kw CE

Tipo:

carregador portátil do ev

weiht:

2,9 kg

Corrente nominal::

32a

Frequência nominal:

50Hz/60Hz

Cable de carregamento:

Stard:

EN 61851-1: 2017/EN 62196-2: 62752:2017 2017/EN

Cor do Cabo:

Preto ou personalização

Proteção:

IP67

Certificação:

Habilidade da fonte:

100000pcs/mês

Destacar:

IP67 portable EV charger

7kw 32A home EV charger

CE certified portable EV charger

Descrição do produto

IP67 7kw CE Portable Home Ev Charger With Standard configuration 5m Charging cable

Product Description

Built to perform in diverse conditions, the EVA07B Portable ev charger operates efficiently between -30°C and 60°C with a relative humidity of up to 95%. Its IP67 rating ensures dust and water resistance, ideal for outdoor use. Natural air cooling maintains optimal temperature during operation, while standby power consumption remains below 0.5W. With a maximum operating elevation of 200mm, it is suitable for various terrains. These features make it a robust and energy-efficient choice for eco-conscious EV drivers who need reliable charging anywhere.

Key Advantage

Adjustable current

Delay charging setting

LED Light and Touch Key

Built-in RCD type B

Specificaiton

Product Model EVA07b
Input/Output voltage	AC 110V/230V
Input frequency	50/60Hz
Max.output power	1 - Phase up to 7.4kW(@230V 32A)
Max.output current	32A for 1 - Phase
Standard	IEC 62752:2016/COR1:2019
Protection
Certificate	CE
Over voltage protection	Yes
Under voltage protection	Yes
Over load protection	Yes
Short circuit protection	Yes
Leakage protection	Yes
Over - temp protection	Yes
Lightning protection	Yes
Function and Accessory
LED indicators	Yes
OLED screen	Yes
RCD	Type B
Current adjustment	Yes
Delay charging adjustment	Yes
Ethernet/WIFI/4G/Bluetooth	No
Working environment
Protection degree	IP 67
Operation temperature	-30℃ - 60℃
Relative humidity	≤95%RH
Operating elevation limit	≤2000m
Cooling	Natural air cooling
Standby power consumption	<0.5W
Mechanical parameters
Charging cable	5m (Standard configuration)
Control box	H×W×D = 200mm×90mm×52mm
Weight	≤2.9kg
Colour&Material	Black;Tempered Glass,PC

Features

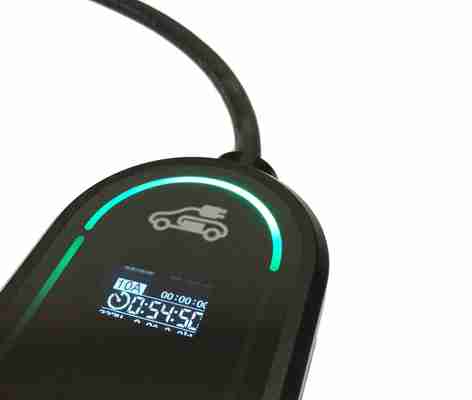

LED Display:

1. Charging Temperature

2. Charging Current

3. Charging Voltage

4. Energy Charged in KW/h

5. Charged time.

6.Set Current

7. Charging speed in KW

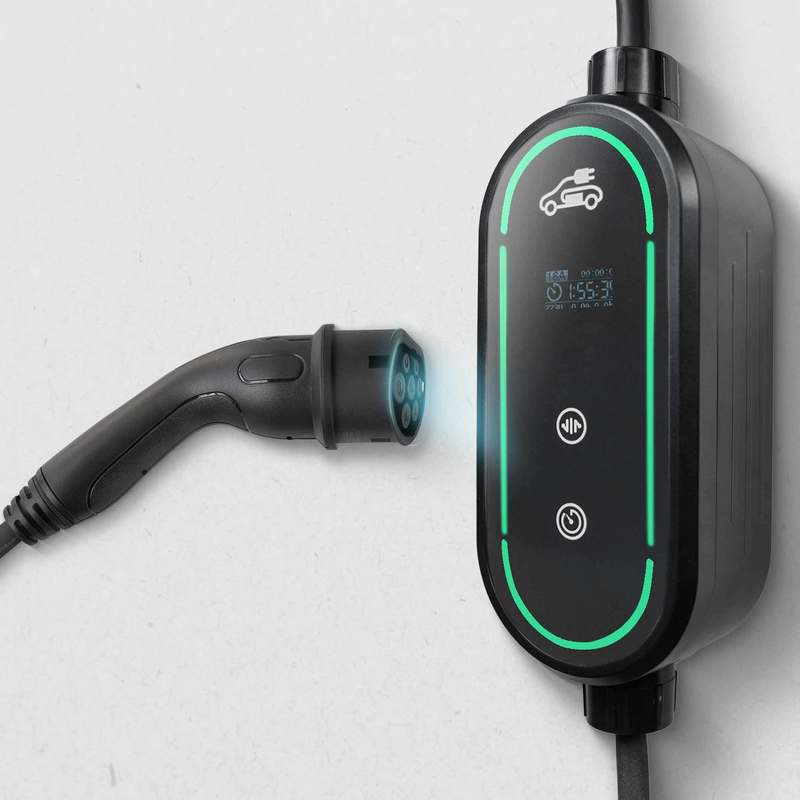

7kW 32A Portable EV Charger with 5m Cable IP67 CE Certified 0

7kW 32A Portable EV Charger with 5m Cable IP67 CE Certified 1

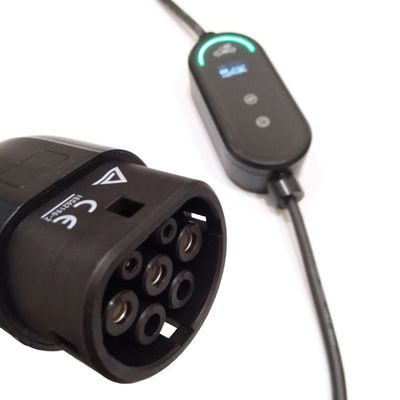

LED Indicators

7kW 32A Portable EV Charger with 5m Cable IP67 CE Certified 2

Control Box Function:

1. Leakage protection

2. Over-voltage or Low-voltage protection

3. Over-load protection

4. Lightning protection

5. Over-heat protection

6. Change current: 8A 10A 13A 16A

How to install

7kW 32A Portable EV Charger with 5m Cable IP67 CE Certified 3

Step 1: Put the wall bracket in a proper position on the wall, mark theposition of the top two screw holes on the wall using a pencil.

Step 2: Put down the wall bracket and drill the holes just marked. insertthe expansion plugs and fix the wall bracket to the wall usingself-tapping

screws.

Step 3: First insert the device into the upper mounting hole of the wallbracket. Then into the round hole of the bottom bracket andfix it on the wall bracket using combination screws.

Packaging

Our Certification

Exhibition
7kW 32A Portable EV Charger with 5m Cable IP67 CE Certified 6

Visits from Various Countries (looking forward to your arrival)

7kW 32A Portable EV Charger with 5m Cable IP67 CE Certified 7
