3.68kW 16A Smart Home EV Charger WiFi and Bluetooth Enabled LCD Display

Nome da marca:	ANS
Número do modelo:	EVB03B
MOQ:	1
Detalhes da embalagem:	15.7153.15 (dentro)
Condições de pagamento:	L/C, T/T, Western Union

Informações pormenorizadas

Descrição do produto

Informações pormenorizadas

Lugar de origem:

China

Certificação:

Nome do produto:

Carregador do Smart Home EV

Tipo:

Carregador portátil do carro

weiht:

Wi-fi:

2,5 GHz

Recurso -chave:

Tela LCE de 2,4 polegadas

Cor do Cabo:

Preto ou personalização

Proteção:

Certificação:

Habilidade da fonte:

100.000 unidades/mês

Descrição do produto

3.68kW 16A Smart Home EV Charger WiFi and Bluetooth Enabled LCD Display

Description:

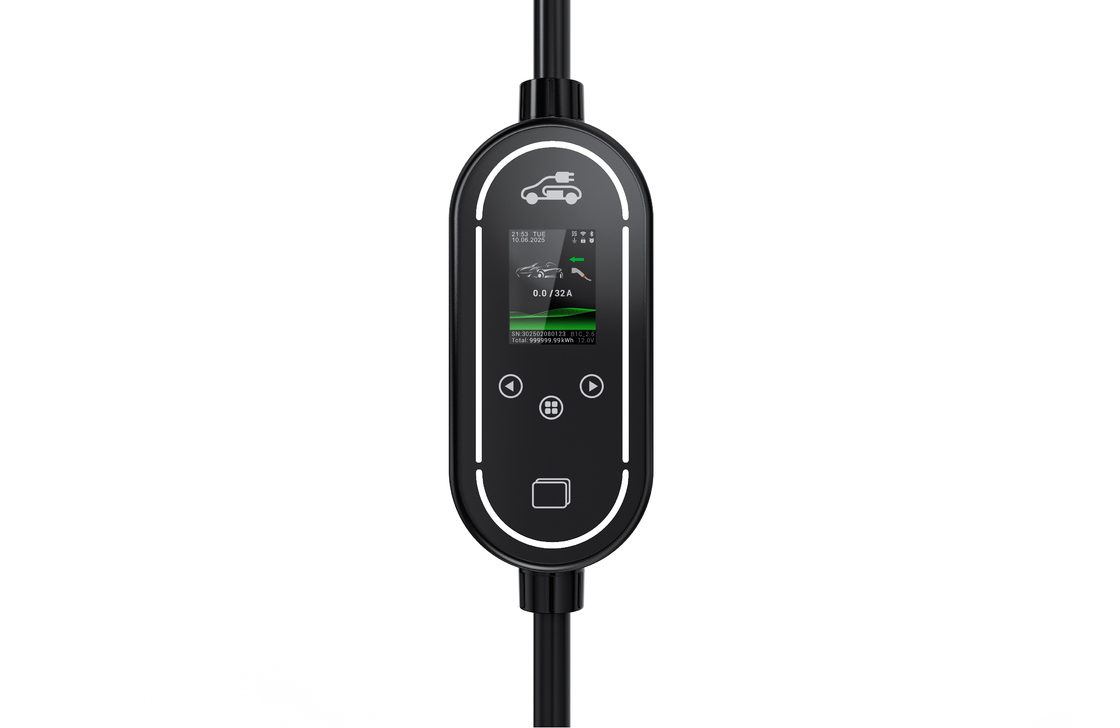

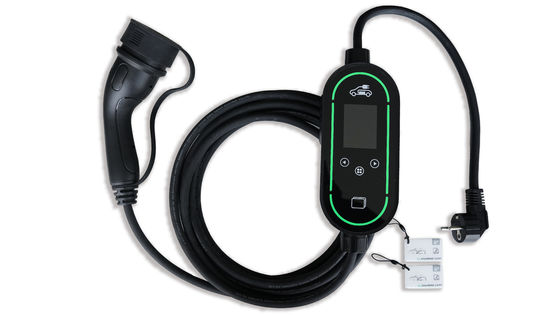

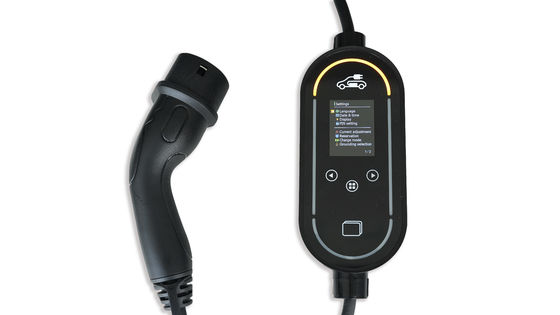

The EVB03B is a smart electric vehicle charger designed for home use, offering seamless integration with your smart home ecosystem. With built-in WiFi and Bluetooth, you can control charging schedules, monitor energy consumption, and adjust settings remotely via a dedicated app. The charger supports current adjustment from 6A to 16A, allowing you to optimize charging speed based on your electrical system’s capacity. The 2.4-inch LCD display shows real-time data such as voltage, current, power, and charging history. It also supports multiple languages, making it user-friendly for international households. Complying with international safety standards, the EVB03B ensures reliable and secure operation in diverse environments.

Core Points:

WiFi & Bluetooth for remote control via mobile app
Adjustable current from 6A to 16A
LCD screen with multi-language support
Compliant with IEC 62752, CE, RoHS

Specificaiton

Product Model EVB03B
Input/Output voltage	AC 110V/230V
Input frequency	50/60Hz
Max.output power	1 - Phase up to 3.7kW(@230V 16A)
Max.output current	16A for 1 - Phase
Standard	IEC 62752:2016/COR1:2019
Certificate	CE,RoHS
Protection
Over voltage protection	Yes
Under voltage protection	Yes
Over load protection	Yes
Short circuit protection	Yes
Leakage protection	Yes
Over - temp protection	Yes
Lightning protection	Yes
Function and Accessory
LED indicators	Yes
Led screen	2.4-inch
RCD	Type B((AC 30mA+DC 6mA)
Current adjustment	Yes
Relay adhesion detection	Yes
RFID manageable	Yes
WIFI/Bluetooth	Yes(WIFI 2.4GHz)
Working environment
Protection degree	IP 67
Operation temperature	-30℃ - 55℃
Relative humidity	≤95%RH
Operating elevation limit	≤2000m
Cooling	Natural air cooling
Standby power consumption	<3W
Mechanical parameters
Charging cable	5m (Standard configuration)
Control box	H×W×D = 200mm×90mm×52mm
Weight	≤3kg
Colour	Black
Material	PC(Flame retardant, UV resistant)

3.68kW 16A Smart Home EV Charger WiFi and Bluetooth Enabled LCD Display 0

Control Box Function:

1. Leakage protection

2. Over-voltage or Low-voltage protection

3. Over-load protection

4. Lightning protection

5. Over-heat protection

6. Change current: 8A 10A 13A 16A

How to install

3.68kW 16A Smart Home EV Charger WiFi and Bluetooth Enabled LCD Display 1

Step 1: Put the wall bracket in a proper position on the wall, mark theposition of the top two screw holes on the wall using a pencil.

Step 2: Put down the wall bracket and drill the holes just marked. insertthe expansion plugs and fix the wall bracket to the wall usingself-tapping

screws.

Step 3: First insert the device into the upper mounting hole of the wallbracket. Then into the round hole of the bottom bracket andfix it on the wall bracket using combination screws.

Installation cases

3.68kW 16A Smart Home EV Charger WiFi and Bluetooth Enabled LCD Display 2

Packaging

Our Certification

Exhibition
3.68kW 16A Smart Home EV Charger WiFi and Bluetooth Enabled LCD Display 5

Visits from Various Countries (looking forward to your arrival)

3.68kW 16A Smart Home EV Charger WiFi and Bluetooth Enabled LCD Display 6
